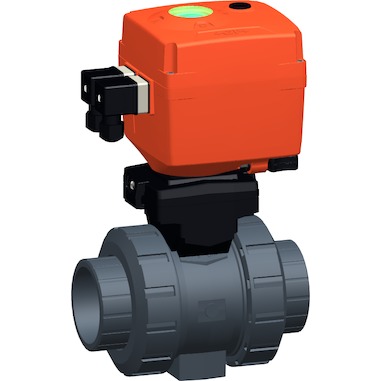

Ball valve with electric actuator, type 127

Type 127 is based on the Ball Valve Type 546 (d16DN10 to d63DN50) with the electric actuator EA15. The Type 127 is designed for automated standard applications with no special demands.

Dimensions: d16DN10 to d63DN50
Connectors: solvent cement -socket and spigot, fusion spigots and sockets threaded and flanged
Standards: ISO, BS, ASTM und JIS
Nominal Pressure: PN 10 for all materials.
Materials: PVC-U, PVC-C, ABS, PP-H und PVDF
 EPDM and FPM, further on request
Ball seal: PTFE, PVDF


Fields of Application:

  • Chemical Process Industry
  • Life Science
  • Microelectronics
  • Measurement and Control
  • Water Treatment
  • Ship Building
  • Food & Beverage



  • electric feedback for ball position integrated into multifunctional module or actuator
  • heating element
  • fail safe return unit with battery
  • integrated emergency override
